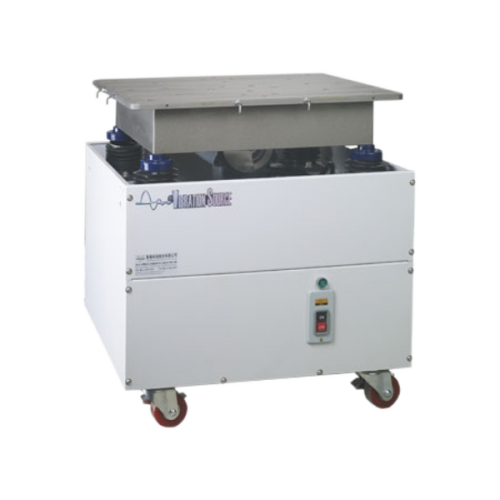

VS-5060L Economic Type Reactive Vibration Tester

  • Low Cost Type Reactive Vibration Tester
VS-5060LEconomic Type Reactive Vibration Tester (VS-5060L)
  • Product Description
  • Product Feature
  • Product Specification
The VS-5060L is a basic vibration testing machine with the following features:
  • Vertical vibration, frequency range 5-100Hz, displacement 0-2.8mm (p-p), maximum load 150Kg, vibration platform size 50x60cm. Power requirements 220V, 50 / 60Hz single phase.
  • Chinese and English computer operation screen, with drop-down test parameter settings, operation and parameter changes is very simple.
  • Fixed frequency, sweep, multi-order random test function, can memorize the unlimited group of test parameters and test report printing.
  • Displays amplitude, acceleration, vibration frequency, vibration frequency, and test run time immediately.
  • The vibration machine operates with very low noise and easy operation.
  • This unit can perform MIL-STD-202F 201A, IEC 60068-2-6, IEC 60512-6-4, CNS C6343, UL 1642, UL 2054, JIS D1601, SAE-575E.


Our advantagesrecognized by industry:
  • No consumables, not prone to failure.
  • Customized countertops and models provide optimum customer benefits.
  • High performance, customer specified.
  • Easy to move and easy to schedule
Low frequency (5-100Hz)；vehicle/ transportation/ package material products testing.
For more options, please contact us freely!
